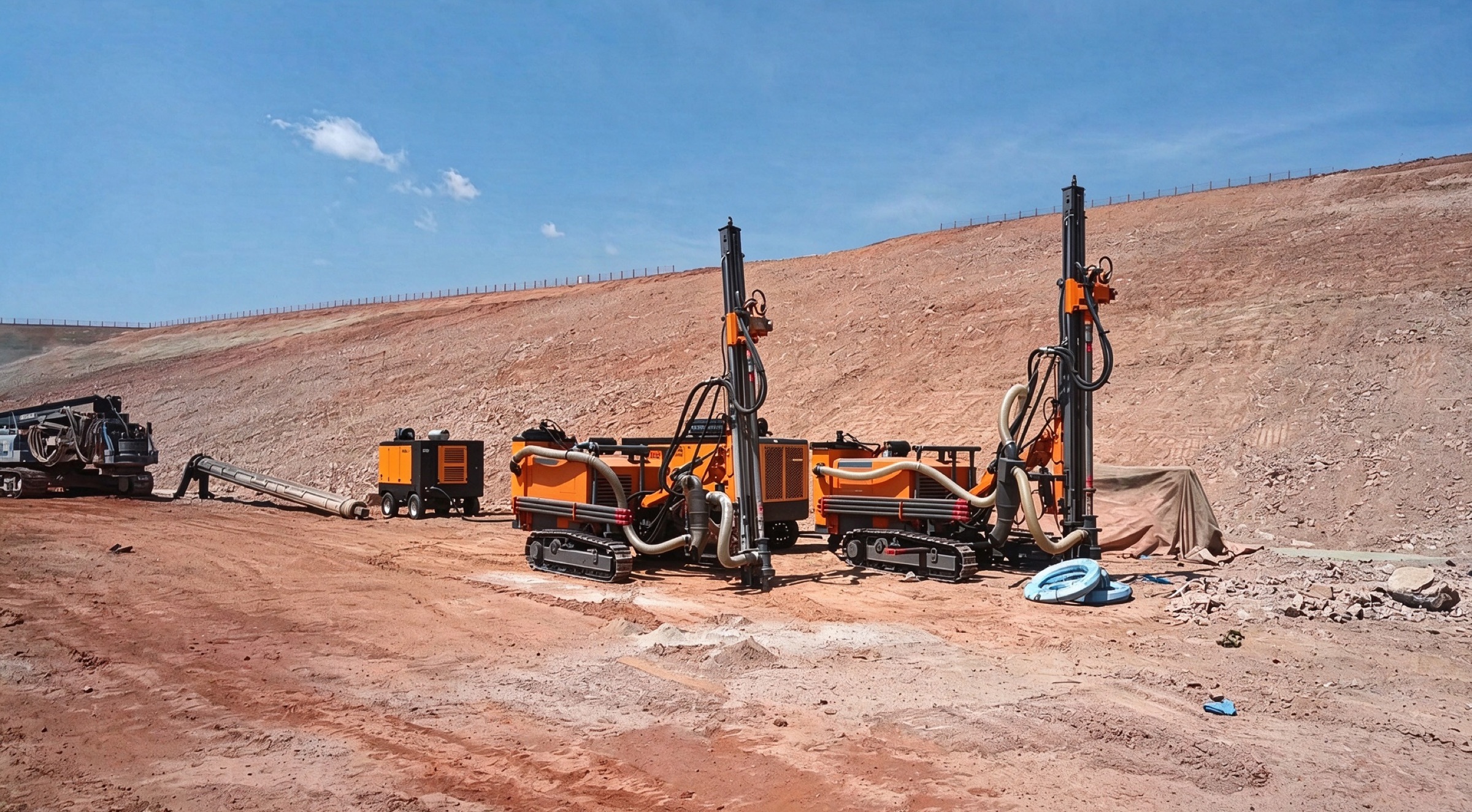

Water Well Drilling Rigs and DTH Crawler Rigs
Crawler water well rigs for wells to 300 m and Ø110–350 mm, plus separated and integrated DTH rigs for blast holes, anchoring and foundations. Every rig ships with a matched compressor, hammer and pipe.
Why it works on site
Wells to 300 m
WPYX-SJ400 and SJ450 drill water, irrigation and geothermal wells through rock, clay and sand.
Easy casing
The SJ450 rotary head shifts sideways, so casing and drill pipe are lifted in without moving the rig.
Soft ground and slopes
Wide tracks for wet ground, 25° gradeability and high jacks that let the rig load itself onto a trailer.
Separated or integrated
Separated rigs work with your choice of compressor. Integrated rigs carry a two-stage compressor, auto rod changer and remote monitoring.
All models
Click a model for full specifications, or quote it directly.
| Model | Type | Key figures | Power | Specs |
|---|---|---|---|---|
| WPYX412B-1 | Separated DTH drill rig | Ø90-115 mm · 21 m | Yuchai 56-59kW | Quote |
| WPYX416T-1 | Separated DTH drill rig | Ø90-115 mm · 21 m | Yuchai 56-59kW | Quote |
| WPYX420B-1 | Separated DTH drill rig | Ø90-127 mm · 21 m | Yuchai 56-59kW | Quote |
| WPYX420TA-1 | Separated DTH drill rig | Ø90-138 mm · 21 m | Yuchai 70-74kW | Quote |
| WPYX425-1 | Separated DTH drill rig | Ø90-138 mm · 21 m | Yuchai 70-74kW | Quote |
| WPYX430-1 | Separated DTH drill rig | Ø115-152 mm · 21 m | Yuchai 70-74kW | Quote |
| WPYX431 | Separated DTH drill rig | Ø115-152 mm · 21 m | Yuchai 70-74kW | Quote |
| WPYX845-1 | Separated DTH drill rig | Ø115-165 mm · 21 m | Yuchai 70-74kW | Quote |
| WPYX420STA | Separated anchor drill rig | Ø90-178 mm · 60 m | Yuchai 56-59kW | Quote |
| WPYX425S | Separated anchor drill rig | Ø110-178 mm · 60 m | Yuchai 70-74kW | Quote |
| WPYX430S | Separated anchor drill rig | Ø110-350 mm · 60 m | Yuchai 70-74kW | Quote |
| WPYX435S | Separated anchor drill rig | Ø110-350 mm · 60 m | Yuchai 70-74kW | Quote |
| WPYX-SJ400 | Separated water well drill rig | Ø110-250 mm · 300 m | Cummins 93kW | Quote |
| WPYX-SJ450 | Separated water well drill rig | Ø110-350 mm · 300 m | Cummins 93kW | Quote |
| WPYX421TA | Integrated DTH drill rig | Ø90-127 mm · 21 m | Yuchai 162kW | Quote |
| WPYX421H | Integrated, auto rod changer DTH drill rig | Ø90-127 mm · 21 m | Yuchai 162kW | Quote |
| WPYX452T | Integrated DTH drill rig | Ø90-138 mm · 21 m | Yuchai 191kW | Quote |
| WPYX452H | Integrated, auto rod changer DTH drill rig | Ø90-130 mm · 24 m | Yuchai 191kW | Quote |
| WPYX453TC | Integrated, auto rod changer DTH drill rig | Ø90-138 mm · 28 m | Yuchai 221-228kW | Quote |
| WPYX454T | Integrated, auto rod changer DTH drill rig | Ø115-152 mm · 25 m | Cummins 264kW | Quote |
| WPYX454H | Integrated, auto rod changer DTH drill rig | Ø115-152 mm · 25 m | Cummins 264kW | Quote |
| WPYX660 | Integrated, auto rod changer top hammer drill rig | Ø76-115 mm · 25 m | Cummins 179kW | Quote |
| WPYX650 | Integrated, auto rod changer top hammer drill rig | Ø64-89 mm · 17 m | Cummins 119kW | Quote |
No model matches these filters. Reset the filters or tell us your hole size and depth.
Where it is used
See the matched packages for each job on the home page.
Water well drilling
Rock, sand and weathered zones. High pressure for drilling, high flow for well flushing.
Ø140–190 mm · ≤300 mSee packages →Geothermal drilling
From heat-pump boreholes to deep wells, with pressure sized to depth and water back-pressure.
Ø140–254 mm · 100–300 m+See packages →Quarrying
Bench blasting for stone and aggregate, balancing drilling speed, tool wear and cost.
Ø90–152 mm · ≤28 mSee packages →Open-pit and underground mining
Configured for power supply, climate and rock: cold, high altitude, heavy cuttings.
Ø115–165 mm · ≤21 mSee packages →Foundation drilling
Anchor, grouting and blow-out holes for dam foundations and caverns.
Ø90–178 mm · ≤60 mSee packages →Road construction
Rock blasting and cuttings for mountain roads, with frequent moves.
Ø64–138 mm · ≤21 mSee packages →Frequently asked questions
How deep and how wide can the water well rigs drill?
Both WPYX-SJ400 and SJ450 have an economic depth of 300 m. SJ400 drills Ø110–250 mm, SJ450 up to Ø350 mm with a stronger rotary head and 130 kN pullback.
Which compressor do the water well rigs need?
SJ400 is usually paired with WPCY550-35/34-38/25K, SJ450 with WPCY755-38/35-40/30K or WPCY755-40/30-43/20K. Deep wells with high water inflow need the higher-pressure setting.
Can they drill through sand and clay?
Yes. The rigs drill rock, clay and sand layers. Use casing through loose ground; the SJ450 side-shift head makes casing installation faster.
Separated or integrated rig?
A separated rig uses a separate portable compressor, costs less and suits small quarries, roads and wells. An integrated rig has its own compressor, dust collector and rod changer, so one operator drills faster on large benches.
How are the rigs shipped?
The WPYX421TA integrated rig fits in a 20 ft container. For other rigs we confirm the shipping method with the transport dimensions in your quotation.
Tell us the hole, we will send the package
Hole diameter, depth, rock type and altitude are enough to start. An engineer replies within 24 hours.
